T&S BRASS 5EF-1D-DS-VF05 EQUIP SENSOR FAUCET OPTNL 0.5 GPM

Specifications:
Part #:	5EF-1D-DS-VF05
Part Description:	Equip 5EF-1D-DS Sensor Faucet w/ Optional 0.5 gpm VR Outlet Device
UPC:	671262742443
Weight:	6.15
Unit of Measure:	EA
Box Dims:	13.25x8.88x3.56
Harmonizing No:	8481.80.9020
Country of Origin:	TAIWAN
Engineering Spec:	Single hole deck mount electronic sensor faucet with polished chrome plated brass body, and 0.5 GPM vandal resistant non-aerated spray device, AC/DC control module, temperature control mixing valve with check valves and 18 flexible stainless steel supply hoses with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements
Brand/Trade Name:	Equip
Warranty:	One Year (Limited)
California CEC-400 (Power Supplies):	Y
California Energy Commission CEC-400 (Plumbing):	Y
FEATURE1:	Single hole deck mount faucet w/ polished chrome plated brass body

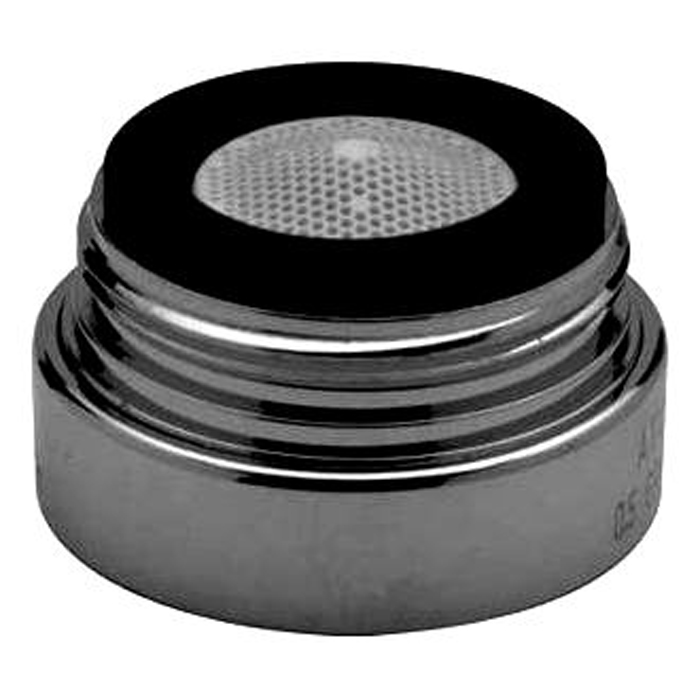

FEATURE2:	0.5 GPM vandal resistant non-aerated spray device, Series 9 (B-0199-09-N05)
FEATURE3:	Water resistant control module
FEATURE4:	Plug in AC transformer or (4) AA battery (DC) power options
FEATURE5:	Mechanical temperature mixing valve w/ check valves

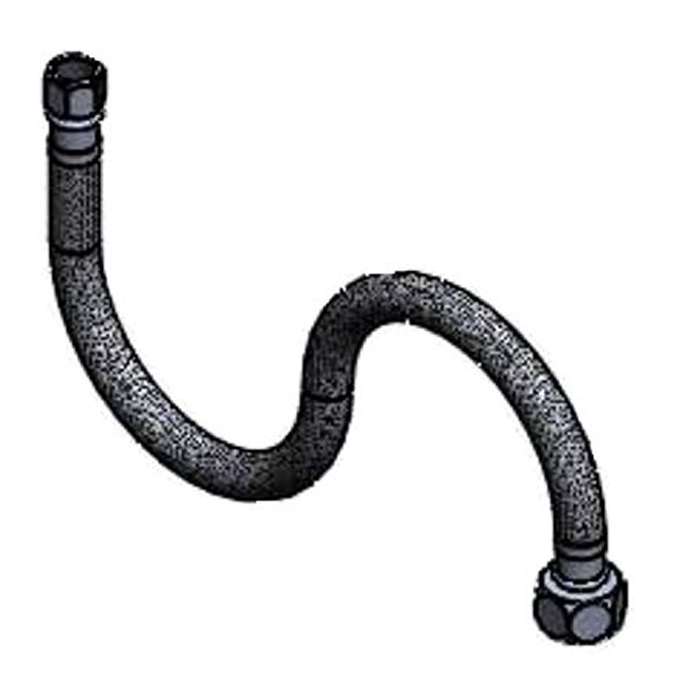

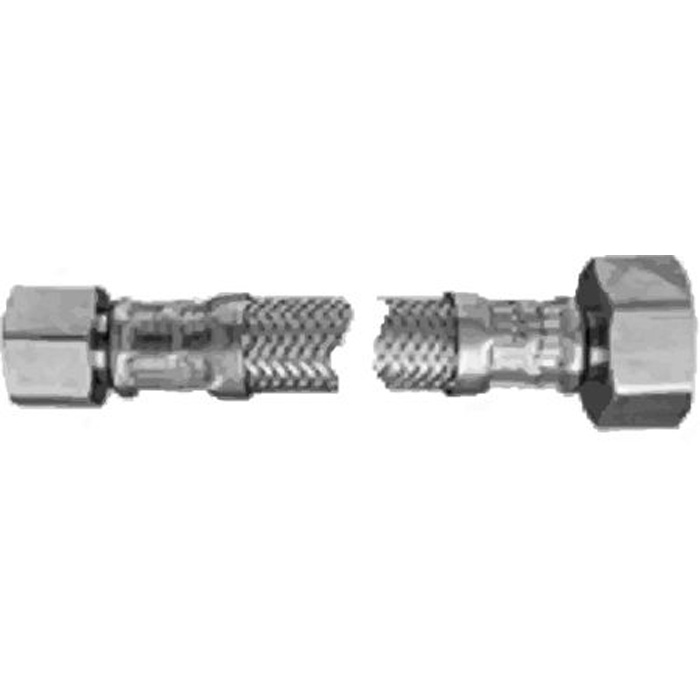

FEATURE6:	18 flexible stainless steel supply hoses w/ 3/8 compression connections
FEATURE7:	Low battery LED indicator light
FEATURE8:	Material: Polished chrome plated brass body & tubular spout
PERFORMANCE 1:	Pressure: 20 - 125 psi
PERFORMANCE 2:	Temperature: 40 F - 140 F
PERFORMANCE 3:	Flow Rate: 0.50 GPM @ 60 psi
PERFORMANCE 4:	Water Consumption: @ 10 sec = .08 gal

T&S Brass
5EF-1D-DS-VF05 Equip Sensor Faucet Optional 0.5 GPM VR Outlet Device

Genuine Equip by T&S Brass Fixtures and Parts
